Formax Atlas C350 High-Speed Automatic Creaser/Folder

Formax Atlas C350 High-Speed Creaser & Folder

Effortless Creasing and Folding in a Single Pass

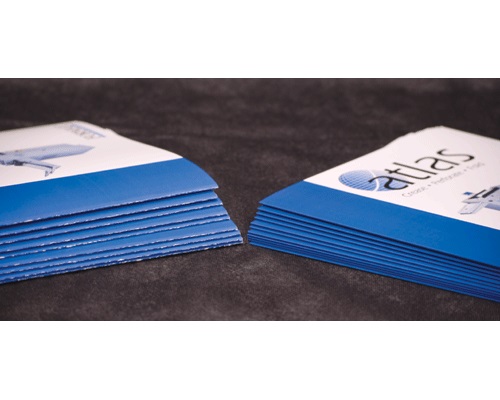

The Formax Atlas C350 is a high-performance automatic creaser and folder designed to streamline digital print finishing. With its dynamic creasing matrix and patented floating knife folding system, it eliminates cracking and minimizes marking on digital prints—making it ideal for high-quality, professional applications.

Fast Setup with 7” Color Touchscreen

Job setup is simple with the intuitive 7” touchscreen control panel. Operators just input the sheet length, weight, and fold type, and the C350 automatically calculates and sets the crease locations. Choose from common presets or customize and save your own crease and fold jobs for future use.

Handles Larger Media with Ease

Equipped with a top-suction vacuum feed system, the Atlas C350 supports paper stacks up to 7.9” high and sheets up to 51” long. Optical sensors monitor the float zone to maintain sheet separation and ensure smooth operation.

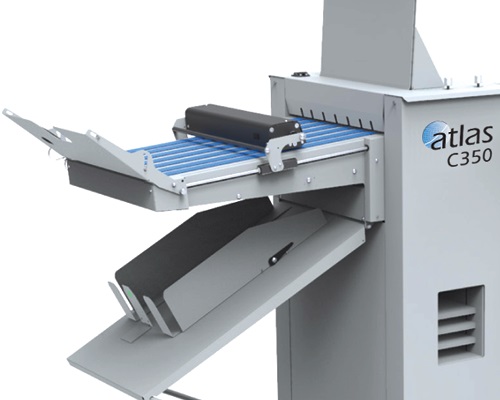

Dual Outfeed Configuration for Flexibility

The machine includes a dual-mode outfeed system:

• Automatic belt stacker for folded sheets

• Catch tray for crease-only jobs, supporting sheets up to 35” long

Switching between modes is effortless via the touchscreen—no manual reconfiguration required.

Crease, Perforate, and Fold Simultaneously

Standard with an inline rotary perforation kit, the C350 can crease, perforate, and fold in a single pass. Optional cross-perforating blades add even more versatility for applications such as brochures with tear-offs. The machine also functions as a standalone creaser or perforator when folding is not needed.

Durable, Compact, and Production-Ready

Built with rugged metal construction and a compact design, the Atlas C350 is a powerful addition to any print shop or production environment looking to maximize efficiency in a limited space.

Key Features

• Fully automatic operation

• Crease and fold in a single pass

• Handles sheets up to 51” long

• Top vacuum feed accepts stacks up to 7.9” high

• Up to 6,000 sheets per hour

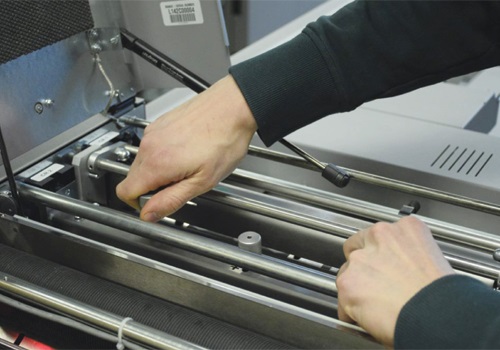

• Quick-change creasing matrices (no tools needed)

• Dual outfeed: belt stacker and flat tray

• 7” color touchscreen with icon-driven interface

• Includes rotary perforating kit

• Optional cross-perforation blade kit
