Formax Cut-True 31H Hydraulic Guillotine Cutter

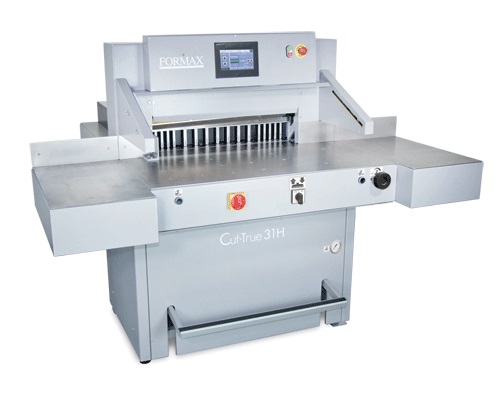

Formax Cut-True 31H Hydraulic Guillotine Paper Cutter

The Formax Cut-True 31H Hydraulic Guillotine Paper Cutter is engineered for precision cutting, offering advanced features designed for high-performance operations in print shops and finishing facilities. Built with a rugged, heavy-duty construction, this cutter can handle large paper stacks up to 28" wide and 4" high, providing accurate cuts for a variety of professional applications.

Key Features of the Formax Cut-True 31H

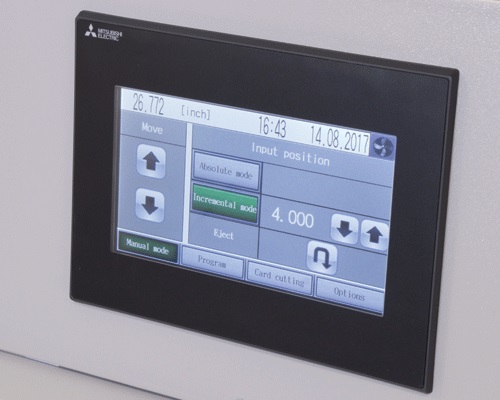

• 7" Color Touchscreen for intuitive programming and job selection.

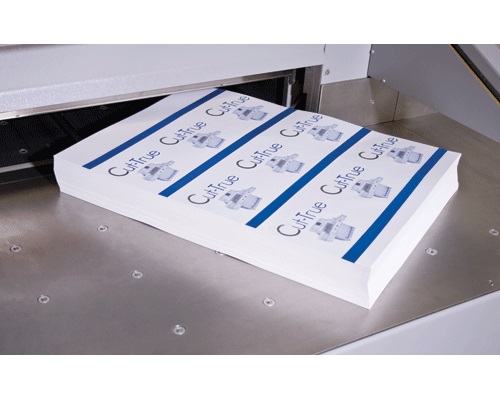

• Hydraulically Controlled System ensures smooth operation with low-friction air-assist ball deck for easy maneuvering of large paper stocks.

• Precision Cutting with cutting accuracy of 0.1mm for stacks up to 80mm high, delivering crisp, accurate results for a wide range of materials.

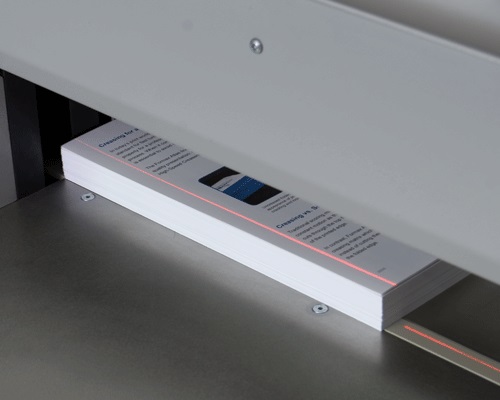

• LED Cutting Line helps operators visually align the paper for precise cuts, minimizing the chance for errors.

• Infrared Safety Curtain halts operation instantly if the light plane is interrupted, enhancing user safety.

• Adjustable Hydraulic Clamp Pressure for optimal clamping, suitable for various paper weights and stack heights.

• Extra-Large Side Tables assist in the easy handling of larger paper sizes, making the cutter perfect for high-volume tasks.

• Up to 100 Programmable Jobs to save time with frequent job setups.

Superior Cutting Technology for High-Volume Applications

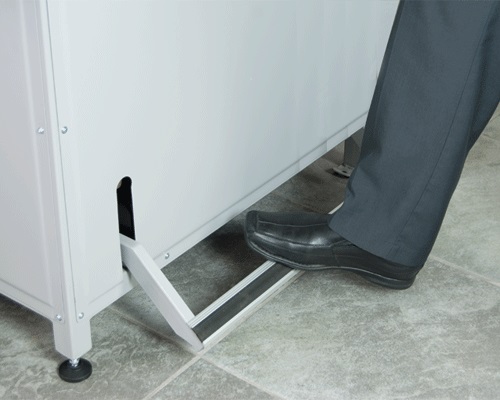

The Cut-True 31H is designed to streamline the cutting process. Its hydraulic blade and clamp drive system, combined with the foot-pedal pre-clamp and LED cutting line, ensures operators can efficiently cut through large stacks of paper. Electronic two-hand operation guarantees precision and safety, making it ideal for high-throughput environments like digital print shops, commercial printing, and in-plant finishing operations.

Enhanced Safety Features

This guillotine cutter is equipped with dual-button operation, a lock with key, a blade lock, and an automatic blade return feature to ensure safe operation. The blade change safety tool and wooden paper push further add to its safety, ensuring the operator can safely align paper without the risk of injury.

Versatile and Robust for a Variety of Cutting Tasks

From brochures and invitations to business cards and large-format prints, the Formax Cut-True 31H delivers precise cutting for various materials. Whether you're cutting perfect-bound books, sensitive papers, or large sheets, the removable false clamp reduces the risk of damage to sensitive stock, making it a reliable tool for any professional print finishing application.

Product Specifications:

• Cuts Paper Stacks Up to 28" Wide

• Maximum Paper Stack Height: 4"

• Hydraulic Operation for Heavy-Duty Use

• Low-Friction Air-Assist Ball Deck

• Automatic Back Gauge Adjustment

• Up to 100 Programmable Jobs/100 Cuts

• LED Cutting Line for Precision Alignment

• Infrared Safety Curtain for Added Protection

• Adjustable Hydraulic Clamp Pressure

• Extra Large Side Tables for Easy Handling
